Clinical Chemistry Equipment

+ - HUMALYZER PRIMUS Click to collapse

Overview

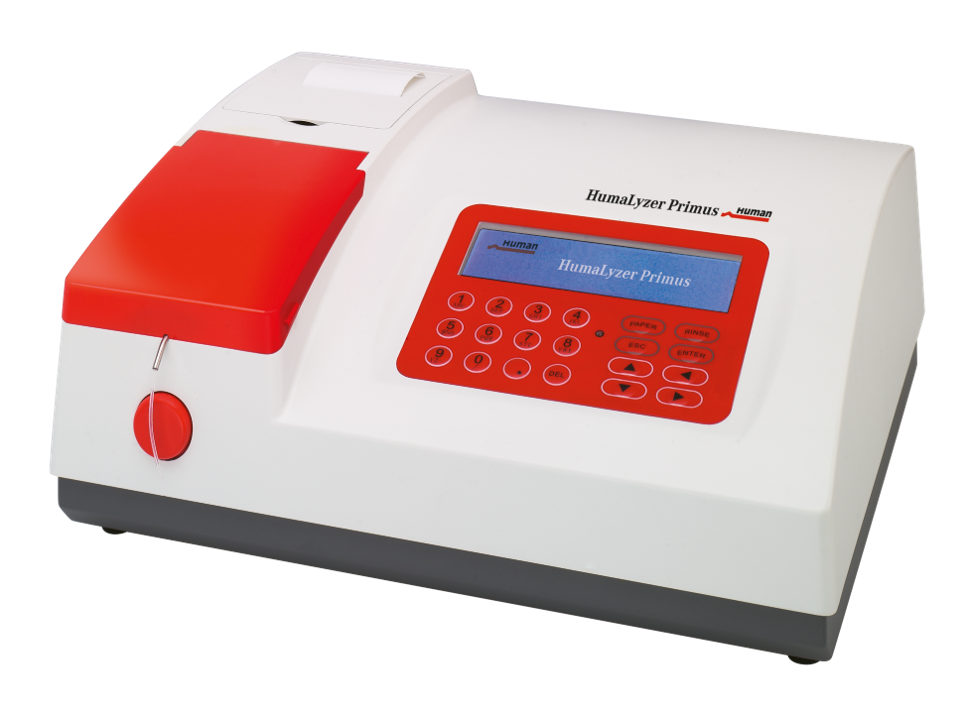

HumalyzaPrimus

The Humalyzer Primus is designed for small and versatile laboratories, and as a backup.

It is a state-of-the-art technology; compactly designed for utmost reliability.

It is equipped with up to 8 out of 13 different filters, thus being most flexible in answering any needs.







Specifications


• 60 programmable methods, with open channels for user defined method
• English software with options for French, Russian, and Spanish
• 20 foil keys
• Wavelengths: 340,405,500,546,620 nm with three optional
• Flow cell and cuvette mode
• Factor, single- or multi-standard
• Graphic display 240 x 64 pixels
• Incubation at: 25oC, 30oC or 37oC
• Built-in printer
• 2200 results storage capacity for results, QC and calibration
• QC statistics module

Brochure Download

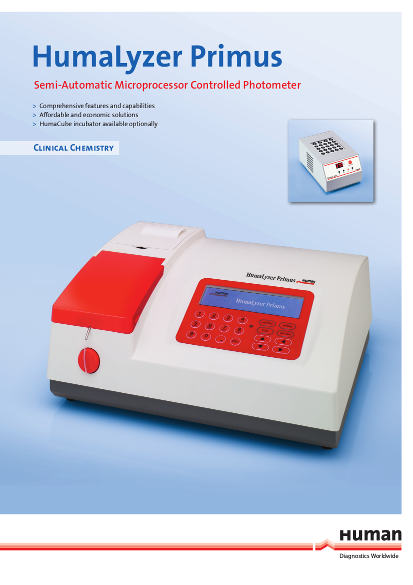

HumaLyzer Primus EN



























+ - HUMALYZER 4000 Click to collapse

Overview

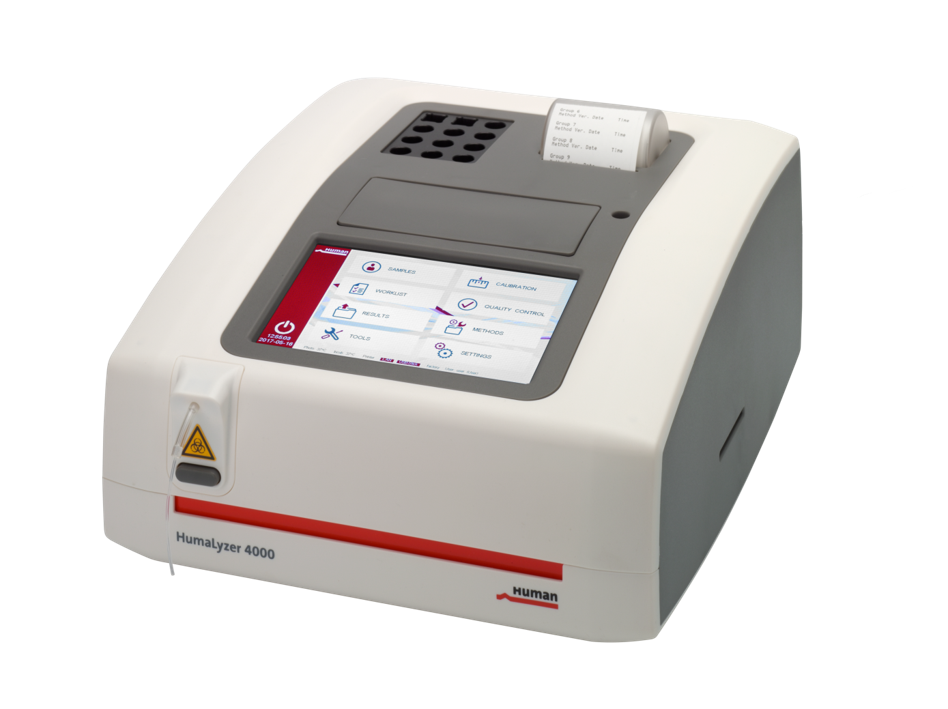

humalyzer4000HumaLyzer 4000 is the only photometer for routine applications that offers reference channel optics and allows remote-access for service. Together with many other new features, the HumaLyzer 4000 is a pioneer in the field of clinical chemistry photometers:

  • Improved precision and drift of results with reference detector technology
  • Easy to use and powerful
  • Designed for tough conditions and use in remote areas
  • Remote support and simple maintenance



Specifications


  • Semi-automatic photometer with reference channel optics
  • 8 installed wavelengths: 340, 405, 505, 546, 578, 620, 700, 750 nm
  • Open channels for user-defined methods
  • Total of 144 programmable methods
  • Preinstalled settings for HUMAN reagents
  • Multi-language software: English, French, Spanish
  • LIS (Ethernet, uni-directional) by using the integrated LAN interface
  • Large color touchscreen 800 x 480 pixels
  • Integrated incubator with 10 round and 2 square positions
  • Built-in printer
  • Passive cooling system – absolutely silent
  • Removable side panel – for quick access to lamp and pump tube
  • Flexible use with Flow cell and square cuvettes
  • Reflector lamp – low energy consumption

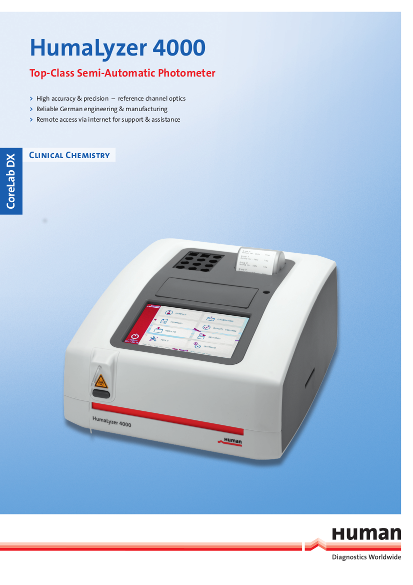

Brochure Download

HumaLyzer 4000 EN





























+ - HUMASTAR 80 Click to collapse

Overview

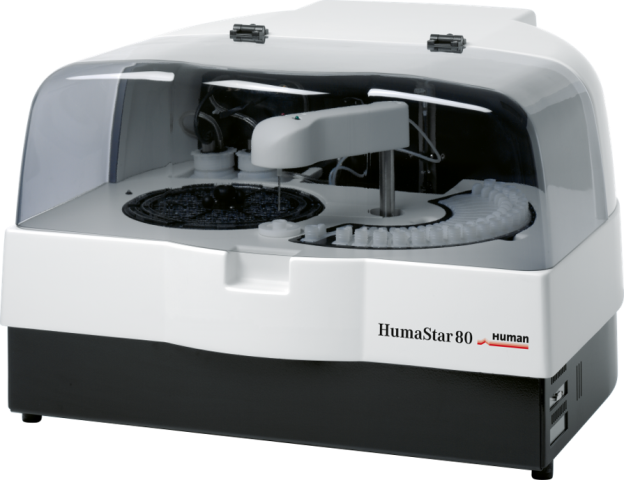

humastar80Humastar 80 is a low throughput optimized benchtop batch analyser. It is perfect for entry into lab automation. Its low maintenance effort and high performance capabilities makes it suitable for modern day clinical laboratory practice.











Specifications

• Throughput of 80 tests per hour
• 20 reagent positions
• 54 sample positions, STAT
• 144 reaction wells and separate flow cuvettes

Brochure Download

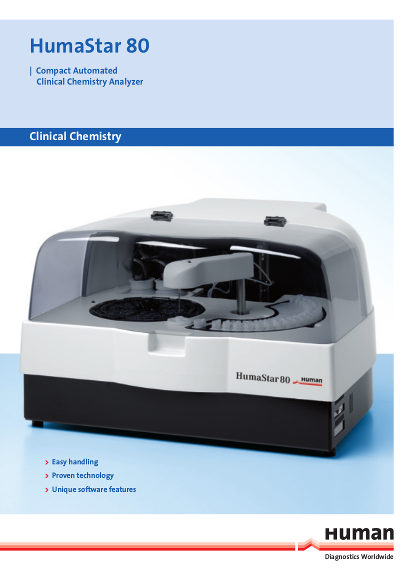

Fly HumaStar80 051206RZ.indd



























+ - HUMSTAR 100/200 Click to collapse

Overview

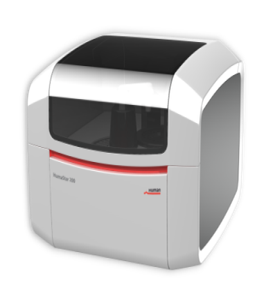

HECMISTRY ANALYSER HUMASTAR 200“ One Concept-Two Analysers”
HumaStar 100/200 are benchtop random access analysers specially designed for small-to-medium-size laboratories.

Both the HumaStar 100 and HumaStar 200 have the same user interface and operational methods but, they only differ in throughputs.

HumaStar 100 has maximum throughput of 100 tests per hour whilst HumaStar 200 has maximum throughput of 200 tests per hour.

Their high performances, precision and robust nature make them meet the demands of modern clinical laboratory practice.



Specifications

Operation

• Random access analyzer
• 30 cooled positions for reagents and solutions
• 60 positions for samples
• 80 reusable Bionex cuvettes
• Direct cuvette measurement
• Needle shock detector
• Multi-step cuvette wash station (8 steps)
• Internal sample barcode reader
• Reagent cooling independent from main power switch
• Primary tubes up to 16 x 100 mm and sample cups
• LIS: Bi-directional, via Ethernet, ASTM
• Multi-language software
• (English, French, Italian, Spanish
• Less than one litre/h water consumption

Safety First
• Routine check and blank for each individual cuvette
• Validity limits for methods and reactions
• Reagent integrity check
• UPS 230 V included

Easy and Efficient
• Automatic pre- and post dilution
• Continuous loading of samples and reagents
• Software optimized for touchscreen monitor
• Capacitive liquid level detector
• Large liquid containers with level sensors

Operational Video

Brochure Download

HumaStar 100 200 EN



























+ - HUMASTAR 300SR Click to collapse

Overview

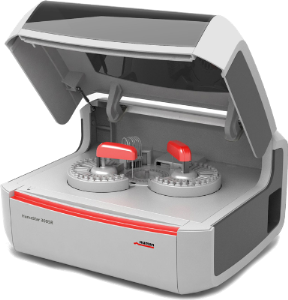

CHEMISTRY ANALYSER HUMASTAR 300SRHumastar 300SR is a rock –solid, reliable and worry-free benchtop, random access reagent analyser for medium size laboratories.

Its design is based on proven hardware and software quality of the HumaStar 100/200.

It runs up to 290 photometric tests per hour and has water consumption rate of 3 litres per hour.

It uses time-tested system reagent kits with perfectly matching methods, calibrators and controls.







Specification


Operation
• Clinical chemistry and turbidimetry
• Random access, STAT
• System reagent methods preinstalled
• and validated
• Open channels with barcoded bottles
• Up to 290 tests / hour
• Samples
• Removable sample tray
• 60 sample positions
• 12.5 mm primary tubes and 1 ml cups
• Optional 16 mm tubes and 3.5 ml cups
• Automatic pre- and post-dilution
• Internal barcode reader
• Reagents & solutions
• 2 removable reagent trays
• 40 positions for reagents and solution
• 70 and 25 ml bottles
• Electronically controlled cooling
Pipetting
• 2 pipetting needles
• Needle shock detector
• Capacitive liquid level detector
• Internal-, external- and method
• specific wash procedures

Reaction
• 8-step cuvette wash station
• Less than 3 l / h water consumption
• Two different wash solutions
• Method specific wash procedures
• Separate containers for normal and high contaminated waste

Software
• External computer required
• LIS: Bi-directional, ASTM, Ethernet
• English, French, Spanish
• Designed for touchscreen
• Automatic check of reagents, expiry dates, calibration, hardware, maintenance, reaction and results

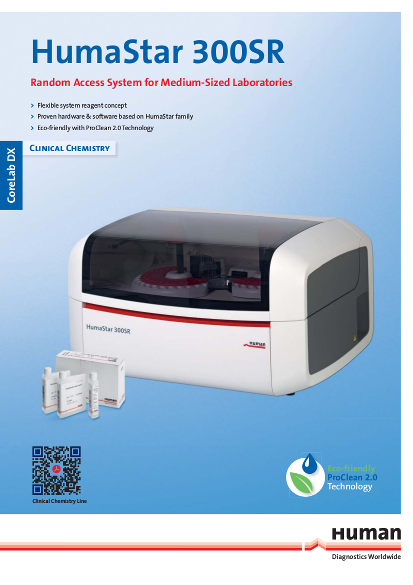

Brochure Download

HumaStar 300SR view


























+ - HUMASTAR 600 Click to collapse

Overview

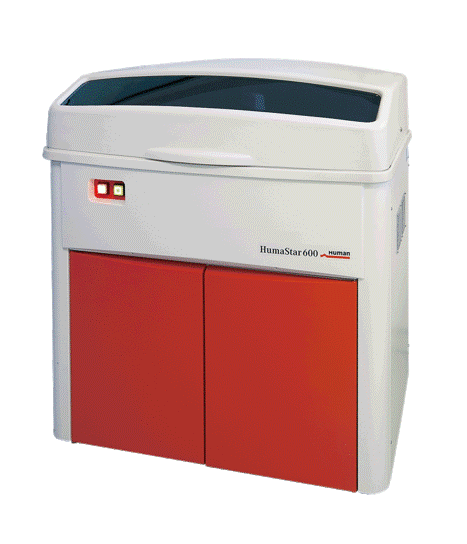

humastar600The HumaStar 600 is a high throughput random access clinical chemistry system reagent analyser designed for being on duty 24/7 to run your day-to-day photometric and immunoturbidimetric, as well as optional direct ISE measurements.

Its architecture incorporates a sophisticated innovative technology but versatile, flexible and user-friendly software.











Specifications


• Up to 600 tests/hour without ISE
• Up to 780 tests/hour with ISE
• Water consumption of less than 5 litres per hour
• Optional ISE module
• 48 cooled reagents on board
• Reagent cooling system
• Continuous programming and sample loading
• Barcode reader for samples and reagents



Operational Video

Brochure Download

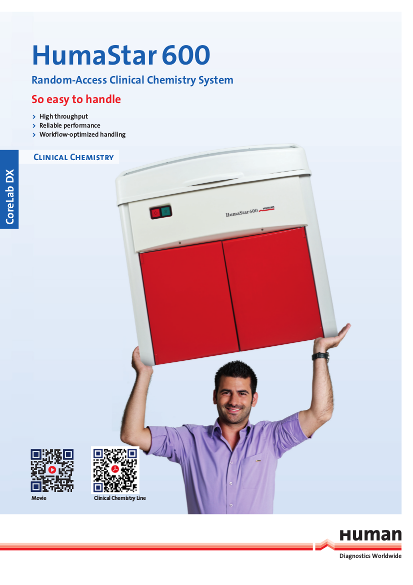

HumaStar 600 EN



























+ - HUMALYTE PLUS 3 & 5 Click to collapse

Overview

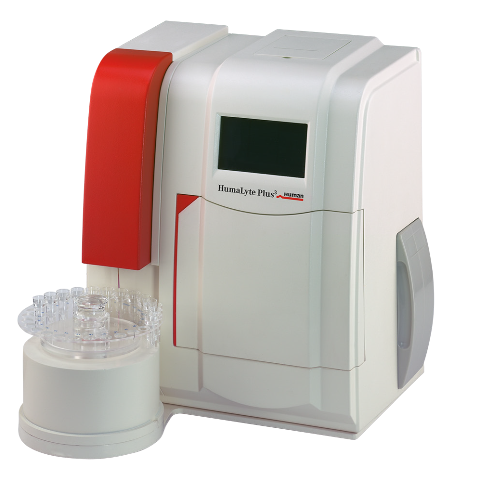

humaPluselectrolyteThe Humalyte plus 3 and 5 are suitable for all kinds of laboratories
The Humalyte plus 3 and Humalyte plus 5 are of the same design and architecture but the only difference between them is the number of Ion Selective Electrolyte (ISE) measurement each can do. They are a cost –efficient solution for rapid electrolyte testing in serum, plasma, whole blood or diluted urine with results being achieved in less than one minute. They are easy to handle and require minimal maintenance. The snap-in replacement technology of the self-contain reagent pack with enclosed waste cartridge ensure reduced exposure to biohazards.
HUMALYTE PLUS3 does: Na+ , K+, Cl+
HUMALYTE PLUS5 does: Na+, K+, Cl+, iCa+, pH



Specifications


• Analysis time < 60 sec per sample
• Closed system with reagent pack
• Sample volume 150ul
• For serum, Whole blood (heparin), plasma (heparin) or diluted urine
• LCD touchscreen
• Auto sampler for 20 samples (optional)
• Internal thermal printer
• Memory 200 samples
• Automatics calibration
• Stand-by mode
• Refillable electrodes

Operational Video

Brochure Download

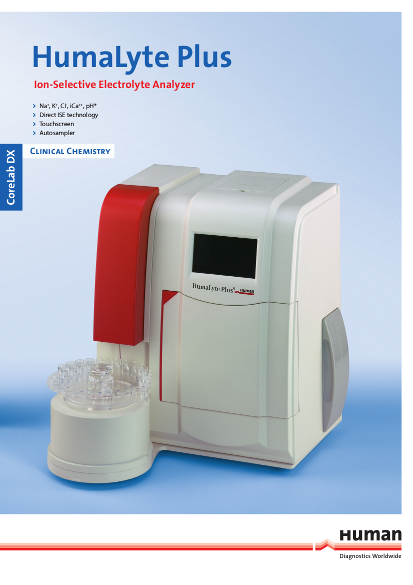

HumaLyte Plus EN
