Hematology Equipment

+ - HumaSRate 24PT Click to collapse

Overview


humasrate24ESR readings with primary tubes

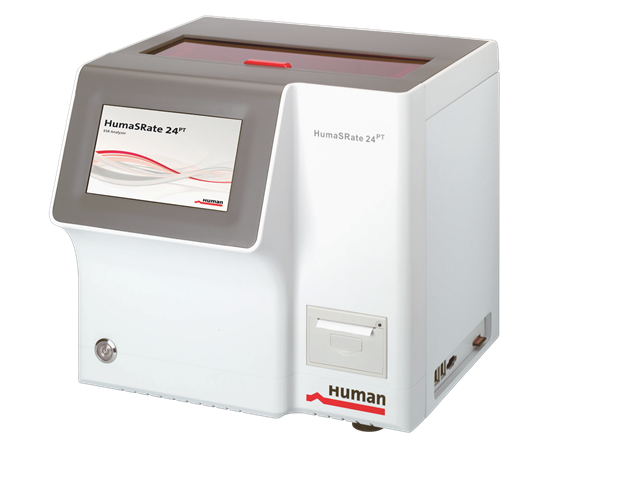

HumaSRate 24PT is a unique ESR system (erythrocyte sedimentation rate) for small to medium sized labs.

The use of primary EDTA tubes for ESR reading is cost efficient, since no ESR tube is necessary and offers the flexibility to run ERS tests at any time without the need for an extra blood collection.



Specifications


• Real erythrocyte sedimentation rate analyzer
• Use of primary EDTA tubes - no consumables needed
• Throughput: Up to 24 samples/h
• Channels: 8 with integrated mixer
• Unique sedimentation curve (outstanding accuracy, measures every 10 sec)
• Excellent correlation to Westergren
• Integrated barcode reader to identify sample ID
• QC module with Levey-Jennigs-Diagram
• Data storage of up to 5000 patient results
• Touchscreen with intuitive user interface
• LIS connectivity

Brochure Download

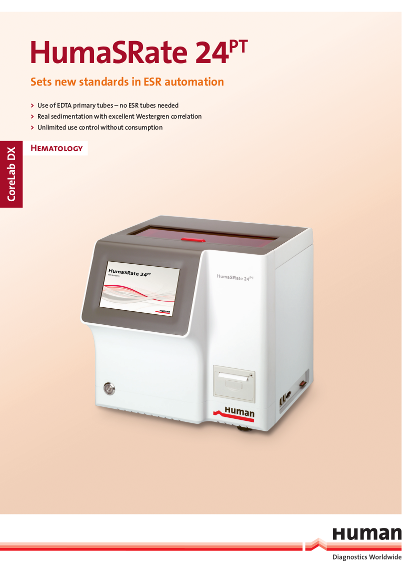

HUMAN 2018 010 Flyer HumaSRate



























+ - HUMACOUNT 5D Click to collapse

Overview


HumaCount5D

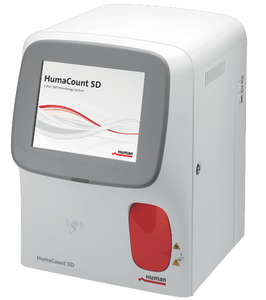

The Humacount 5D is a 5-part differential hematology analyzer based on 3D laser scatter detection.

It is versatile in operation (switches between 5- and 3-part (CBC) mode, and this makes its price/test affordable.

The design incorporates Capillary Blood Process (CBP), with 0 µl dead volume which provides the same accuracy as for venous blood mode.













Specification


• Fully automated
• 29 parameters (including LIC and ALY)
• Up to 60 samples/hour (CBC) to meet throughput during peak hours
• Up to 45 samples/hour (CBC+diff mode)
• 20 µl venous or capillary blood
• Standalone system with integrated PC with 50,000 sample storage capacity
• Large colour screen
• LIS connection
• 2D barcode reader via USD (optional)

Brochure Download

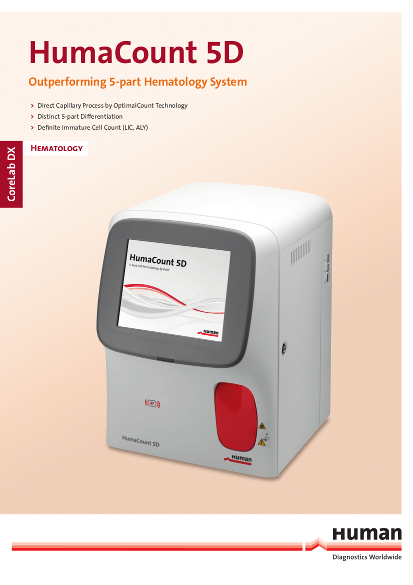

humacount5D



























+ - HUMACOUNT 30TS and 80TS Click to collapse

Overview

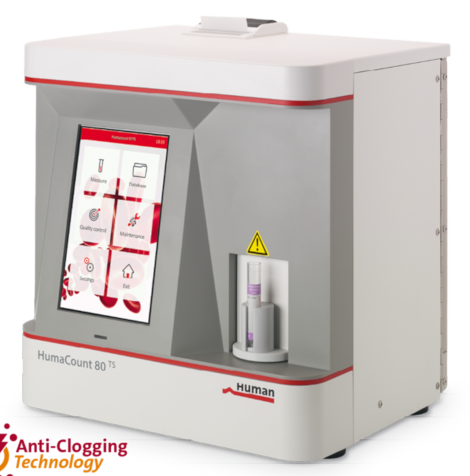

humaCountThe Humacount 30TS and the Humacount 80TS are 3-parts systems.

They differentiate and count three types of WBC and analyzed red blood cells as well as platelets.

Their design is based on electrical impedance; and anti-clogging technology (that reduce clogging rate by high-energy burst that burns away protein at each measurement cycle resulting in low cleaner consumption.

The difference between the Humacount 30TS and the Humacount 80TS is that, the Humacount 30TS preforms 30 full blood counts per hour whilst Humacount 80TS performs 80 full blood counts per hour.









Specification

• 22 parameters
• Fully- automated
• Large colour touchscreen
• Built-in thermal printer
• External printer options via USB port
• Anti-clogging technology
• 25ul sample volume
• Open tube sampling

Operational Video

Brochure Download

humacount3080
